12V,18V,24V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm
Product introduction:
1.It's DC Brushless Motor. 20mm diameter.32mm Length .12V,18V,24V
2.No load speed ±12%: 24525rpm. No load current Max150%: 200mA .Maximum power output 38.4W. Terminal resistance ±12%: 0.91Ω.
3.Torque constant 4.6mN.m/A. Speed constant 2075 rpm/V.
4.Brushless motors can install the corresponding with encoder and planetarty gearbox
5.Weight :51.8g
Product Details:
| Motor Model | AM-BL-2032AN-1225 | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 24525 | rpm |
| No load current Max150% | 200 | mA |
| Max cont.torque | 2.3 | mN.m |
| Rated Speed | 23581 | rpm |
| Rated Current | 700 | mA |
| Rated Power | 5.7 | W |
| Starting current | 13187 | mA |
| Stall Torque | 60 | Nm |
| Maximum power output | 38.4 | W |
| Maximum Efficiency | 77 | % |
| Terminal resistance ±12% | 0.91 | Ω |
| Inductance ( 1KHz ) | 0.07 | mH |
| Mechanical time constant | 3.0 | ms |
| Moment of inertia | 0.69 | gcm² |
| Torque constant | 4.6 | mN.m / A |
| Speed constant | 2075 | rpm / V |
| Speed / torque gradient | 410.4 | rpm / mN.m |
| Weight | 51.8 | g |
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
More information. please vist our website : www.assunmotor.com
|
|

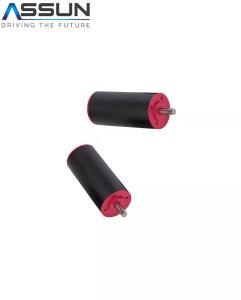

12V,18V,24V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm Images
|
